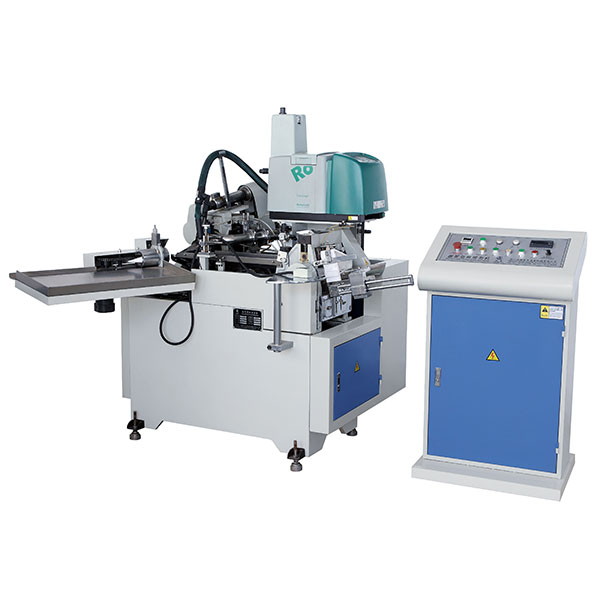

ZZB-120A Automatic Paper Cone Curling Machine

Product Information

1. This machine can make curling of the water cone cup. 2. This machine is automatic , can dispense the cone cup itself and make curling then collect the finished cup . 3. It is equipped with micro-computer controlled, can adjust the speed . 4. Its photoelectric tracing system provide automatic alarm and stop . 5. Past CE and SGS. 6. The maximum speed can reach 190pcs/minutes.


MAIN TECHNICAL PARAMETERS

GENERAL POWER

4.25KW

PAPER REQUEST

80-150g/?

POWER SUPPLY

220V50HZ/380V50HZ OR CUSTOMIZE

Cone SIZE

2-10OZ

SPEED

40-50PCS/MIN

WEIGHT

900KGS

DIMENSION

1700x1300x1600MM
