MACHINE DESCRIPTION

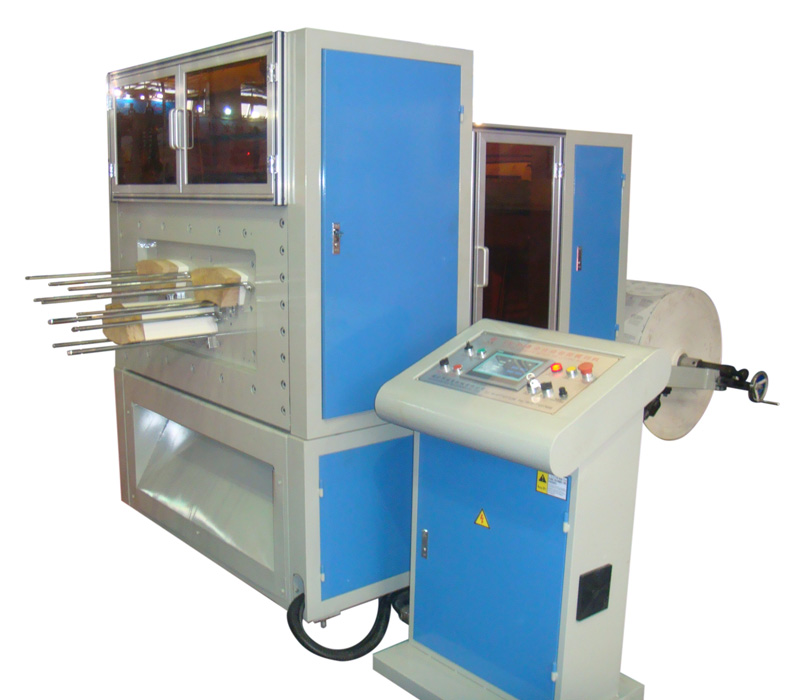

VIC-900 Automatic Die Cutting Machine is designed with human-computer interface, which offers convenient machine operation. Equipped with servo motor driving and positioning system, AC frequency converter, auto-counting device, manual (pneumatic)lock plate, photoelectric error-correction device, electromagnetic clutch, centralized lubrication system, over-load protection device and uniquely-designed rotational mechanism, our die cutting machine features smooth paper feeding and unwinding, and accurate positioning, etc.
CHARACTERISTICS
The key components and control system of our computerized micro-gap flat creasing and die cutting machines are acquired from other countries. Their precise configuration guarantees sable machinery operating pressure, precise positioning, stable operation and high safety standard. CY-850B Automatic rotary die cutting machine can cut the roll paper into shaped sheet blank.
High speed, 170-230 times/ min, about 600-1000 pcs/min.
Cut the roll paper to small blank directly, control the wast, the paper wastage rates small than normal cutting machine.
Automatic and request less labor.
MAIN TECHNICAL PARAMETER
| Die-cutting precision: | +-0.10mm |
| Rated die-cutting speed: | 60-100times/min |
| Highest die-cutting speed: | 110 times/min; 5,400times/hour |
| Highest die-cutting pressure: | 120T(250N/cm2) |
| Max. suitable paper size: | 900 x 530mm |
| Min. suitable paper size: | 490 x 400mm |
| Paper specification: | 130?500g/m2 |
| Motor power (total): | 11kw |
| Main motor power: | 7.5kw |
| Overall dimension: | 4,000 x 1,700 x 1,700 mm |
| Machine weight: | 6,000kgs |
| Optimum environment: | ventilating and dry conditions, 10-25? |
