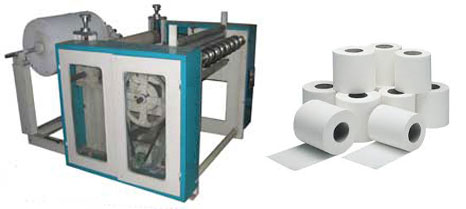

Toilet Roll Making Machine

Machine Specification

You can make roll by hard paper and soft paper also.

Specification of Toilet Roll Making Machine

Model Toilet Roll Making Machine with Embossing
Size 81 cm working
Slitting distance 99 mm
Cutter 8 Rotary Cutter with Holder & Bottom
Perforation Repeat on 110 mm above
Maximum rewind 200mm
Motor 2 HP DC Motor with thyrister control drive
Speed 1500 to 1,800 Rolls/8 Hrs/100gm
Unwind Station One
Man Power One Operator & 1 Packer
Raw Material 16 gsm (2ply)
Maximum Unwind Dia 1200 mm Max
Counting Auto cut Digitally Counting
Embossing Attachment with mechanical Embossing ( Metal to rubber) design as per requirement
