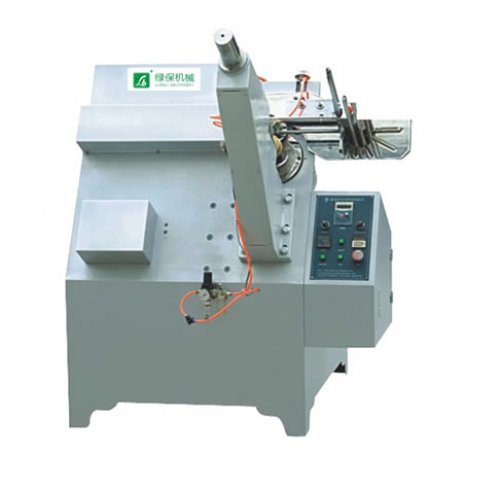

Automatic Cake Tray Making Machine

MACHINE DESCRIPTION...

1.DGT Automatic Cake Tray Forming Machine adopts the advanced technology introduce from Italy through digestion,integration,and self-innovation.It is the first-class level in technology at home and in the international track.
2.It employs the new technology like manipulator clipper pneumatic in controlling the paper,automatic separating paper,mould punching-forming in heat and topping.
3.It can make paper trays for cakes and aluminuim foil trays for cakes with different specifications through exchanging the moulds.
4.It is characterized by compact construction,easy to operation,higher production efficiency and regular performance.


MAIN TECHNICAL PARAMETER

Model

DGT

Paper specification

15-120g/m2

Paper Material

Anti-oil paper and Aluminum foil paper

Rated Productivity

20-35Times/Minute(10-20PCS/Time)

Total Power

1kw 220/380V 50HZ

Air Source

Working pressure 0.4MPa Working air volume 0.2-0.3m3/min

Weight

450kg

Overall dimensions (L*W*H)

1600x1140x1400mm
