MACHINE DESCRIPTION....
|

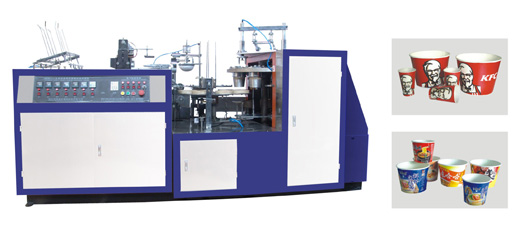

SZW Paper bowl machine is designed on the basic of Model SZB/W Paper cup machine, it is automatic machine with multi-running positions. This machine runs a whole procedure of paper-feeding, bowl-fan-wall sealing,oiling,bottom punching, heating, knurling,curling ,bowl discharge and bowl counter. It is an idea equipment of producing large capability and big diameter containers like soup bowls,instant noodles bowls , KFC and so on.
|  |
MAIN TECHNICAL PARAMETER
|
Model |
SZW-70 |
SZW-80(Special model) |
SZW-110(Special model) |
|
Production capacity |
35-45PCS/min |
30-40PCS/min |
20-30PCS/min |
|
Required Paper |
200-400gsm Single Side PE Paper or Double Sides PE Paper |
||
|
Bowl�s Range |
(A) 60-128MM,(B)60-110MM (C) 75-105MM , (D)5 -12 MM |
(A) 90 -155MM ,(B)60-130MM (C) 90-125MM , (D)6 -12 MM |
(A) 150 -240MM ,(B)100 -180MM (C) 125 -180MM , (D)8 -15 MM |
|
Total power |
220/380V 50/60HZ ?5KW | 220/380V 50/60HZ ?7KW | 220/380V 50/60HZ ?11KW |
|
Air supply requirement |
Working pressure: 0.4-0.9working gas volume: 0.8m3 /per minute | ||
|
Weight |
2000kg |
2200 kg |
2500kg |
| Overall dimensions (L*W*H) |
2700*1300* 1800mm |
2900*1550* 1850mm |
3700*2100* 2300mm |
