Paper Cup Making Machine

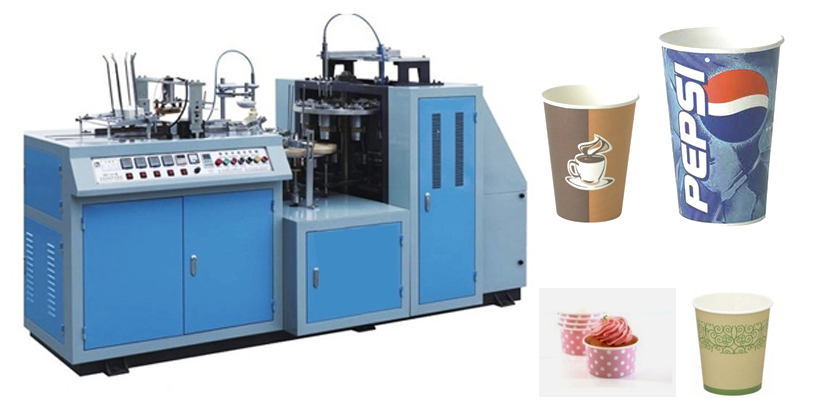

Fully Automatic Singe-side-PE-coated Paper Cup Forming Machine.

Brief Introduce : ZB-09 type single PE coated paper cup machine is the automatic environmental machine with multilingual positions.

This machine runs a whole procedure of paper-feeding, cup-fan-wall sealing, oiling, and bottom punching, heating, rolling, rimming, rounding and tripping.

It is an idea equipment of producing drinking cup, ice-cream cup and other food cone-shaping containers. This type paper cup machine is mainly used to make one side PE coated paper cups from 3 oz to 18 oz.

Main Technical Data

Paper Cup Sizes: 2, 3,4,5,6.5,8,9, OZ sizes

Row material: Single side(one side) PE(polyethylene) film coated paper Suitable paper weight: 150--280 gsm
Speed of making paper cups: 45--55 pcs per minute
Limit of temperature control: 0--400 Centigrade
Total power: 5 KW Power source: 380 V,220V 50 Hz,60 Hz or other Customer needed
Whole machine weight: 1300 kg
Appearance size(L x W x H): 2500 x 1200 x 1400 mm
Work in 24 hours

Note: We can make the paper cup machine suitable for your requirement.

MODE OF PAYMENT: All payment will be made in cash or D.D and Cheque through bank you have to pay 50% as advance to book the plant. Balance amount 50% will be paid in the time of delivery of machine.

TRAINING: Our Trained Technician will give the complete training for making the above mentioned finished products. You have provided him accommodation at your station and his normal fare for train and local conveyance at your station.After training you will call technician than pay service charge 1000/Rs in local and 2000/-Rs for out of city.
